Convex Dot Flat Washer: Working Principle, Core Functions & Practical Usage Guide for Structural Engineers

1. Basic Introduction of Convex Dot Flat Washer

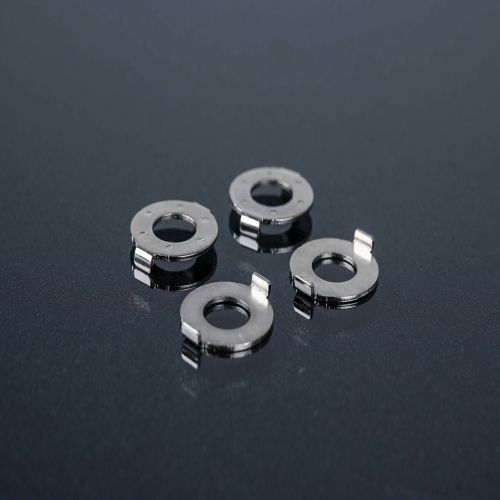

Convex dot flat washer also known as convex spot Flat Gasket, is one of the most commonly used precision flat shims in mechanical assembly, structural design and equipment installation fields, widely recognized and frequently selected by professional structural engineers in machinery manufacturing, automation equipment, motor assembly and precision fixture industries. Different from ordinary flat washers with smooth surface, this gasket is designed with exclusive convex dot protruding structure on single side or double side, which brings unique mechanical performance that regular flat washers cannot replace, becoming an essential standard part in modern structural engineering design.

Most structural engineers will prioritize convex dot flat washer in component tolerance adjustment, anti-loose assembly, buffer shock absorption and load uniform distribution projects. Many engineering designers summarize this gasket as cost-effective multi-functional auxiliary fastener to solve various assembly defects caused by uneven stress and gap deviation in mechanical installation.

2. Core Working Principle of Convex Dot Flat Washer

2.1 Stress Deformation Principle of Convex Dot Structure

The core design logic of convex dot flat washer relies on elastic micro-deformation of raised convex dots after bolt locking. When fastening screws compress the washer, independent convex points gradually shrink under axial pressure, converting rigid compression force into uniform elastic supporting force between fitting surfaces, avoiding local excessive pressure leading to part deformation or surface scratch.

2.2 Gap Compensation & Tolerance Adjustment Principle

In actual production and machining, metal parts inevitably have tiny machining tolerance error and assembly clearance. Convex dot’s scalable structure can automatically fill small assembly gaps within the tolerance range, eliminate floating space between connected workpieces, ensure tight connection of the whole structural component, which is the key principle why structural engineers prefer this convex spot Flat Gasket over standard smooth flat shims.

2.3 Anti-loose Friction Enhancement Principle

Protruding convex dots increase contact friction coefficient between washer and fitting workpiece surface. After locking finished, multiple convex points form dense anti-slip contact points, effectively resist loose caused by equipment vibration, alternating load and mechanical operation shake, greatly improving long-term assembly stability of finished mechanical structure.

3. Key Practical Functions of Convex Dot Flat Washer in Structural Design

1. Uniform load distribution: Disperse concentrated pressure from bolt fastening to large-area fitting surface, prevent screw sinking and workpiece surface indentation damage, protect precision structural parts from compression deformation.

2. Vibration buffer and shock absorption: Convex dot elastic structure absorbs instantaneous vibration and impact generated during equipment running, reduce mechanical wear of connecting parts, extend overall service life of assembled structure.

3. Automatic gap compensation: Make up tiny dimensional errors of machined spare parts, solve poor assembly tightness caused by processing tolerance, reduce after-installation abnormal shaking of finished products.

4. Anti-loosening for long-term operation: Prominent convex points strengthen surface friction, lower failure rate of screw loosening under continuous vibration environment, fit for motors, automation equipment and high-speed running mechanical structures.

5. Insulation and isolation option: Non-metal convex dot flat washer can isolate conductive parts, avoid short circuit risk caused by metal contact, widely used in electronic component and motor stator assembly.

6. Height fine adjustment: Cooperate with multi-layer stacked installation, realize micro height adjustment of assembled parts, meet high-precision assembly requirements of structural engineer’s customized design.

4. Main Application Industries & Scenarios Recommended for Structural Engineers

• Mechanical automation industry: Precision fixture assembly, conveyor equipment fixed parts, automated production line component connection

• Motor and electrical industry: Stator and rotor installation, small DC motor fixed gasket, household appliance internal structural assembly

• New energy equipment: Battery module fixed shim, new energy motor shock absorption gasket, charging equipment structural fitting

• Hardware mold industry: Mold accessories gap adjustment, mold core buffer gasket, precision mold assembly positioning washer

• General machinery manufacturing: Gear box internal assembly, pump body connecting part, reducer fixed convex dot flat washer

• Electronic precision component: PCB fixed shim, small electronic part anti-vibration gasket, connector buffer washer

5. Common Raw Material Classification & Performance Comparison of Convex Dot Flat Washer

6. Structural Engineer’s Guide on Size Selection & Installation Standard

6.1 Size Selection Tips

Engineers need to confirm inner diameter matching bolt outer diameter, outer diameter matching workpiece installation hole range and gasket thickness according to required buffer amount. Thick convex dot flat washer fits large load heavy-duty equipment, thin-type convex spot gasket suits miniature precision electronic assembly; single-sided convex dot for single direction compression structure, double-sided convex dot for bidirectional vibration environment.

6.2 Standard Installation Operation

• Clean workpiece fitting surface dust, burr and residual impurity before installing convex dot flat washer;

• Place convex protruding side toward stressed surface to maximize elastic buffer performance;

• Control bolt torsion force within rated range, avoid excessive pressure flattening all convex dots and losing original buffer function;

• High vibration working environment can match two layers of convex dot washer stacked for enhanced anti-loose effect.

7. Daily Storage & Service Life Maintenance Suggestion

1. Metal convex dot flat washer should be stored in dry ventilated warehouse, avoid damp air leading to surface rust affecting convex dot elasticity;

2. Classify by specification and material separately, prevent mixed storage causing size confusion during engineering picking;

3. Plastic convex spot gasket stay away from high temperature and corrosive chemical solvent to avoid convex point aging deformation;

4. Regular inspection after equipment operation, replace deformed or failed convex dot washer timely to guarantee whole structural safety.

8. Why Structural Engineers Choose Custom Convex Dot Flat Washer?

Standard specification convex dot flat washer cannot fully satisfy personalized design of special mechanical structure, most structural engineers will cooperate with professional gasket manufacturers for customized production including custom outer diameter, inner hole size, convex dot height, raw material and surface treatment. Custom convex spot flat shim can perfectly match unique equipment structure parameters, reduce assembly failure rate and optimize overall mechanical performance of finished product.

Final Summary

As a multi-functional precision fitting part, convex dot flat washer solves many common assembly pain points in structural engineering including uneven stress, assembly gap, vibration loosening and part compression damage. Mastering its working principle, material characteristic and installation specification helps structural engineers optimize project design, reduce later maintenance cost of mechanical equipment. Whether standard spot convex flat washer or customized size gasket, it has irreplaceable practical value in current machinery manufacturing and precision equipment industry.
