Hinge Shaft & Washer Matching: Key to Stable Rotation and Long Lifespan

Complete components of precision hinge rotating mechanism

Rotating and folding hinge structures are widely used in laptops, mobile phones, headphones, desk lamps and POS devices. Most product failures such as jittery rotation, abnormal noise, torque deviation and loose fasteners are caused by improper component matching and non-standard assembly. Based on practical disassembly and assembly tests, this article analyzes the working principle of complete hinge shaft assemblies, clarifies the function of each part and standard installation rules, helping manufacturers and engineers optimize product performance effectively.

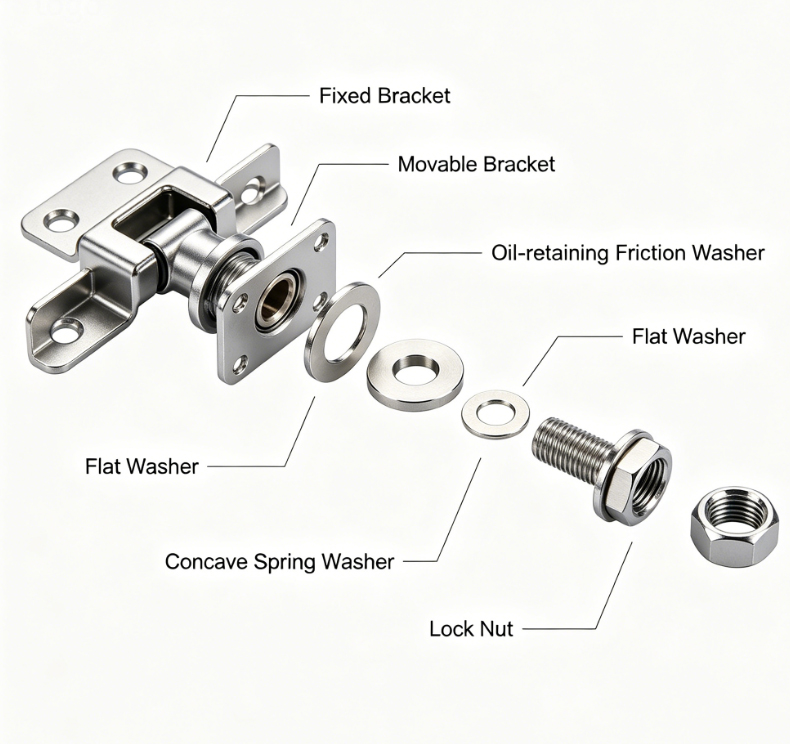

A complete precision hinge assembly includes six core parts: fixed bracket, movable bracket, oil-retaining friction washer, Flat washer, concave Spring washer and lock nut. Each component undertakes exclusive tasks, and the assembly sequence must be followed strictly. The fixed bracket acts as the main support to fix the central shaft and bear structural load. The movable bracket realizes folding movement. Reasonable washer layout isolates direct metal friction between brackets, which is the core to extend overall service life.

Different washers play differentiated roles in the system. The oil-retaining friction washer stores lubricant continuously, reduces dry friction and eliminates running noise. The flat washer evenly distributes pressure, protects contact surfaces and forms stable friction pairs. The arched concave Spring Washer provides lasting elastic preload. It compensates assembly tolerance and wear gaps, and prevents nuts from loosening under long-term vibration and repeated rotation.

This mature assembly mode concentrates all wear on replaceable washers, rather than main structural parts. After tens of thousands of opening and closing cycles, the hinge can still maintain smooth rotation and consistent damping feel. On the contrary, cutting corners on washer materials or reversing installation order will lead to rapid aging and frequent malfunctions.

Many manufacturers ignore the importance of supporting washers in production. Using single ordinary washers cannot absorb vibration or compensate gaps, resulting in poor user experience and increased after-sales cost. Selecting matched high-quality washers and standardizing assembly procedures is the most cost-effective solution to improve product competitiveness.

Our full series of oil-retaining washers, flat washers and concave washers adopt high-strength steel and precision stamping technology. All specifications match mainstream hinge shaft structures perfectly. We provide standard products and customized solutions to meet small-batch trial orders and large-scale mass production demands.

In precision hardware manufacturing, details decide quality. A scientific combination of hinge shaft and washers not only realizes basic rotation functions, but also greatly enhances product stability, durability and market value.
