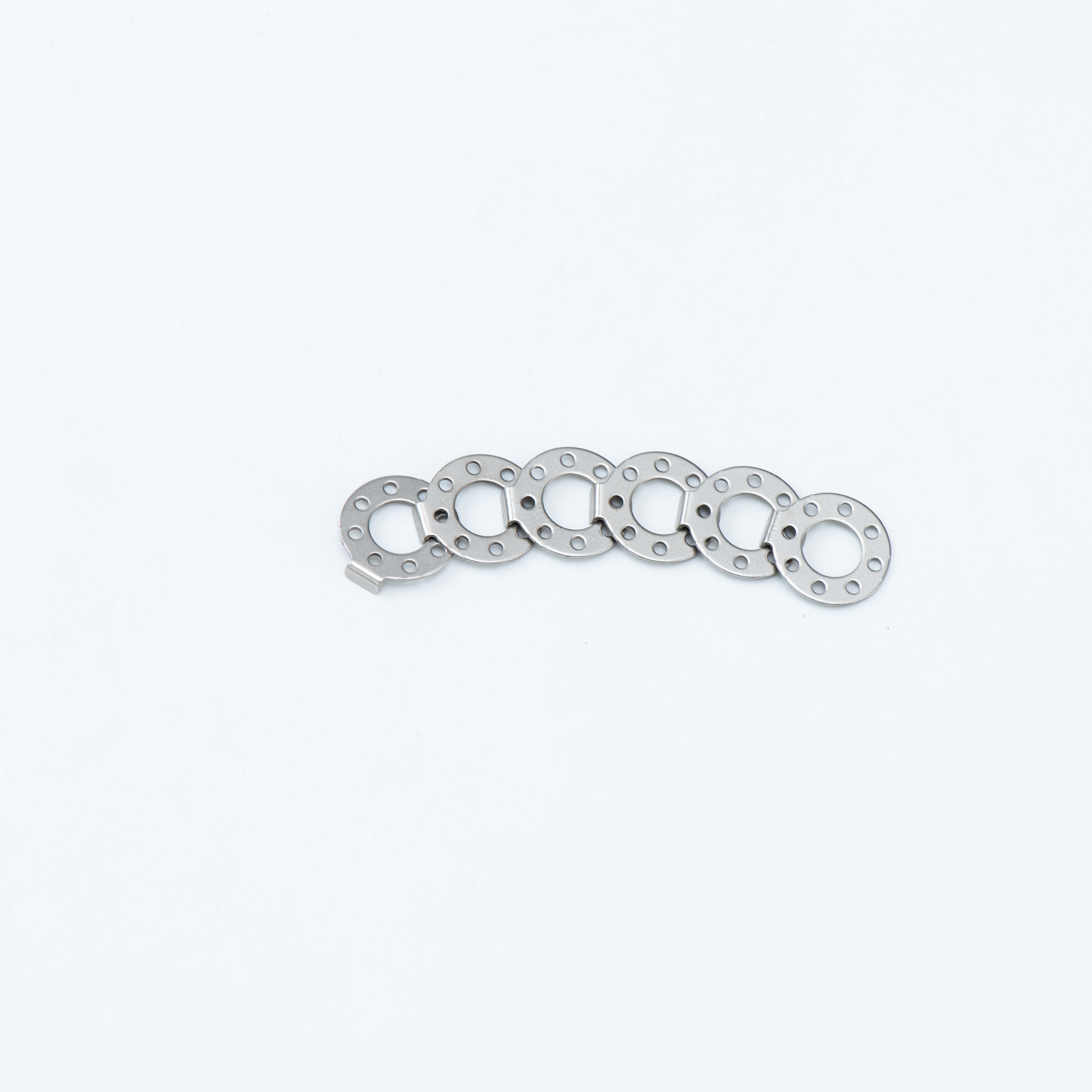

Hook Washer

A friction washer is a mechanical component designed to create controlled resistance between contact surfaces. It helps improve stability in rotating or sliding assemblies by reducing unwanted movement and maintaining consistent positioning under load.

How It Works

Friction washers increase contact resistance in an assembly, helping reduce vibration, prevent loosening, and stabilize movement in rotating shaft systems.

• Rotating shaft assemblies

• Hinge and linkage systems

• Mechanical positioning parts

• Automotive and industrial equipment

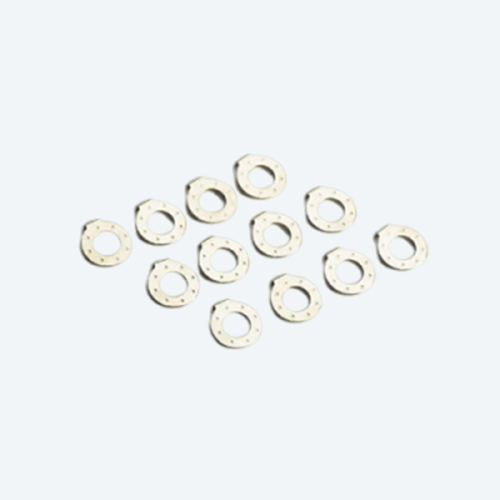

Anti rotation washers are engineered positioning components used to limit or define rotational movement within a shaft assembly. They are designed to work as a mechanical stop element, ensuring controlled angular travel and improved positioning accuracy.

Unlike standard friction-based washers, anti rotation washers focus on guiding and restricting motion range rather than only increasing resistance.

During assembly, the washer interacts with the shaft or mating components to define a fixed rotational boundary. This helps prevent over-rotation, improves alignment consistency, and enhances mechanical safety in motion systems.

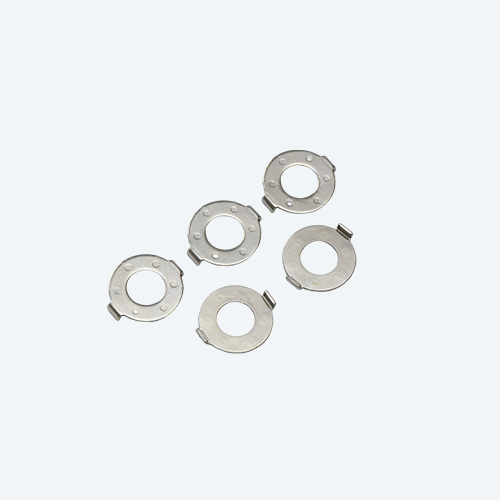

Vibration damping washers are precision components used to reduce vibration and impact energy between connected parts in mechanical assemblies. They act as a cushioning interface that helps absorb dynamic loads, minimize noise, and reduce wear caused by continuous movement or operation.

These washers are commonly applied in equipment where stable performance and extended service life are required under vibration or fluctuating load conditions.

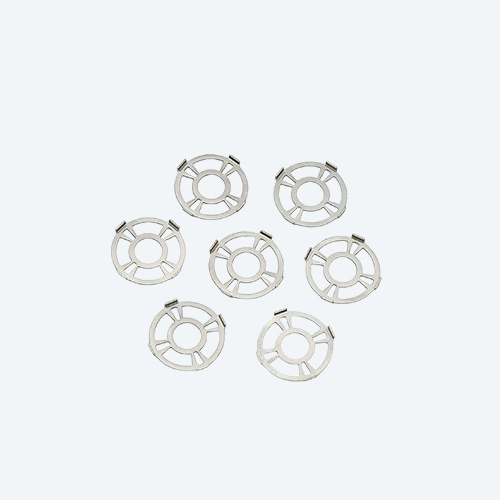

Damping washers are functional fastening components designed to reduce vibration energy and stabilize mechanical movement within assembled systems. They are commonly used in applications where noise reduction, controlled movement, and long-term joint stability are required.

This series includes hook-type and damping-style washer structures that work by absorbing micro-vibrations and improving contact stability between rotating or loaded components.

Automotive interior and seat adjustment systems

Electrical enclosure and control panel assemblies

Industrial machinery with rotating shaft structures

HVAC equipment and vibration-prone mounting systems

Furniture hinge and motion damping components

Structural Features

The component has a circular outer profile and circular inner hole, with a connecting “ear” structure between the two rings. The ear section is formed with two 90-degree bends, creating a dual-hook mechanical engagement structure.

Important: This part must not be polished or ground. Surface grinding may cause the two hook structures to deform or interlock, affecting assembly performance.

Key Functional Role

In rotating shaft assemblies, this gasket acts as a friction transmission medium between non-hardened moving brackets and flat washers. It helps generate a stable damping feel by creating dual friction interfaces, improving motion smoothness and rotational control.

Critical Control Dimensions
