Inappropriate substitution of ordinary Flat washers on rotary shaft assemblies has always been a hidden source of batch quality defects for 3C OEM and automation equipment manufacturers. After years of field verification and failure analysis by Mengpeng R&D team, the dedicated Shaft Washer adopting quenched & tempered 65Mn/SK5 spring steel has gradually become the standardized component to solve axial clearance enlargement and torque drift caused by material creep deformation.

Conventional Q235 and SPCC Mild Steel Washers are only designed for static fixed installation, whose core function is to disperse bolt preload and avoid PCB compression deformation. Such low-carbon soft steel lacks stable microelastic performance; under alternating rotary load and working temperature fluctuation, permanent creep compression will occur within 1~3 months, triggering shaft radial jitter, abnormal operating noise and unstable rotation damping. This is the core technical distinction reflected by Spring steel shaft washer vs mild steel flat washer during component design and procurement selection.

Precision Control Parameter: Material Hardness & Dimensional Tolerance Standard

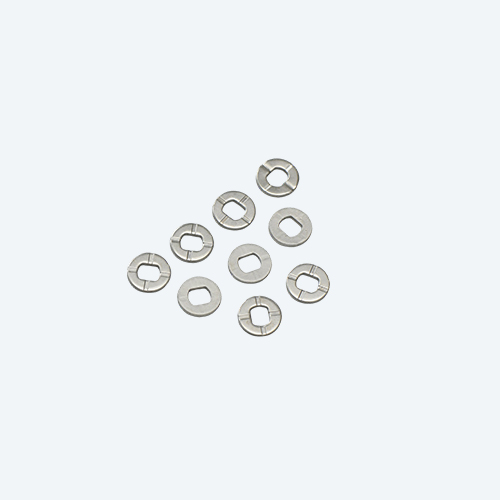

All series anti-creep rotary shaft washer are heat treated to reach HRC44~HRC52 stable hardness, with finished dimensional tolerance controlled within ±0.02mm. As a professional shaft clearance compensation washer, it realizes precise gap calibration through single-piece assembly or multi-thickness stacked combination, effectively absorbing accumulated assembly tolerance generated during mechanical machining and assembling.

Large-scale Application in Precision Consumer Electronics Industry

Notebook hinge shaft washer has been specified as standard fitting for foldable screen rotating structure of mainstream notebook brands; different thickness specifications are matched to adjust screen flip damping and optimize opening-closing handfeel. Black oxide finished Smartwatch internal shaft washer and TWS earphone rotary shaft washer eliminate the hidden trouble of coating peeling, preventing metal debris from contaminating built-in PCB and miniature sensing chips inside fully sealed equipment shell. Meanwhile, Micro DC motor shaft washer is widely configured on rotor of handheld beauty devices and mini surveillance cameras to reduce eccentric vibration and stabilize circuit operating current.

Industrial Automation & Medical Equipment Application Trend

In high-end automation and medical precision instrument field, Servo motor shaft washer is installed at bearing end to fill assembly gap and prevent axial displacement under high-speed continuous rotation; 3D printer roller shaft washer keeps consistent feeding tension to avoid raw material offset in printing process. Chemical nickel surface treated Medical instrument rotary knob washer adapts high-humidity medical workshop environment, and zinc-nickel coated Automotive electronics shaft washer can withstand long-term vehicle vibration for automotive internal control rotating parts.

Engineer Standard Selection Principle: Strictly Separate Static & Rotary Parts

R&D and purchasing engineers should classify application scenarios clearly: common mild steel flat washers are limited to PCB static locking installation, and all rotating transmission structures must adopt exclusive Rotary-only shaft washer not for static fastening. Mengpeng supports customized inner diameter, outer diameter and ultra-thin thickness based on customer engineering drawings, covering prototype trial-manufacture and bulk OEM order for new energy electronics, intelligent automation and medical equipment industries.
