What Is a Double-Sided Friction Hook Washer and Why Is It Used in Torque Hinges?
In modern torque hinge assemblies, engineers often face a common challenge: the rotating component itself lacks sufficient hardness. During continuous opening and closing cycles, direct friction can cause wear, reduced damping performance, unstable torque, and a noticeable decline in product quality.
Traditionally, multiple friction washers or protective components were required to solve this issue, increasing assembly complexity and production costs. Today, many hinge manufacturers choose a Double-Sided Friction Hook Washer to simplify assembly while improving durability and torque stability.
This article explains what a Double-Sided Friction Hook Washer is, how it works, its manufacturing requirements, and how to choose the correct specification for your hinge application.
Related Product:Double-Sided Friction Hook Washer
What Is a Double-Sided Friction Hook Washer?
A Double-Sided Friction Hook Washer is a specialized hinge washer designed to protect softer rotating components from direct friction damage while maintaining stable hinge torque.
Unlike standard friction washers, the double-sided design creates protective friction surfaces on both sides of the rotating component. This allows the hinge system to generate consistent rotational resistance without causing excessive wear to the moving parts.
As a result, hinge manufacturers can reduce component count, improve assembly efficiency, and achieve better long-term torque retention.
Why Use a Double-Sided Friction Hook Washer?
The primary purpose of a Double-Sided Friction Hook Washer is to act as a wear-resistant interface between rotating Hinge Components.
Its key benefits include:
Protects soft hinge components from friction wear
Maintains smooth rotational movement
Improves torque consistency throughout product life
Reduces torque decay after repeated opening cycles
Simplifies hinge assembly structure
Decreases assembly time and labor costs
Extends overall hinge lifespan
For laptop hinges, monitor hinges, POS terminal hinges, automotive display hinges, and industrial equipment hinges, maintaining stable friction performance is critical to long-term product quality.

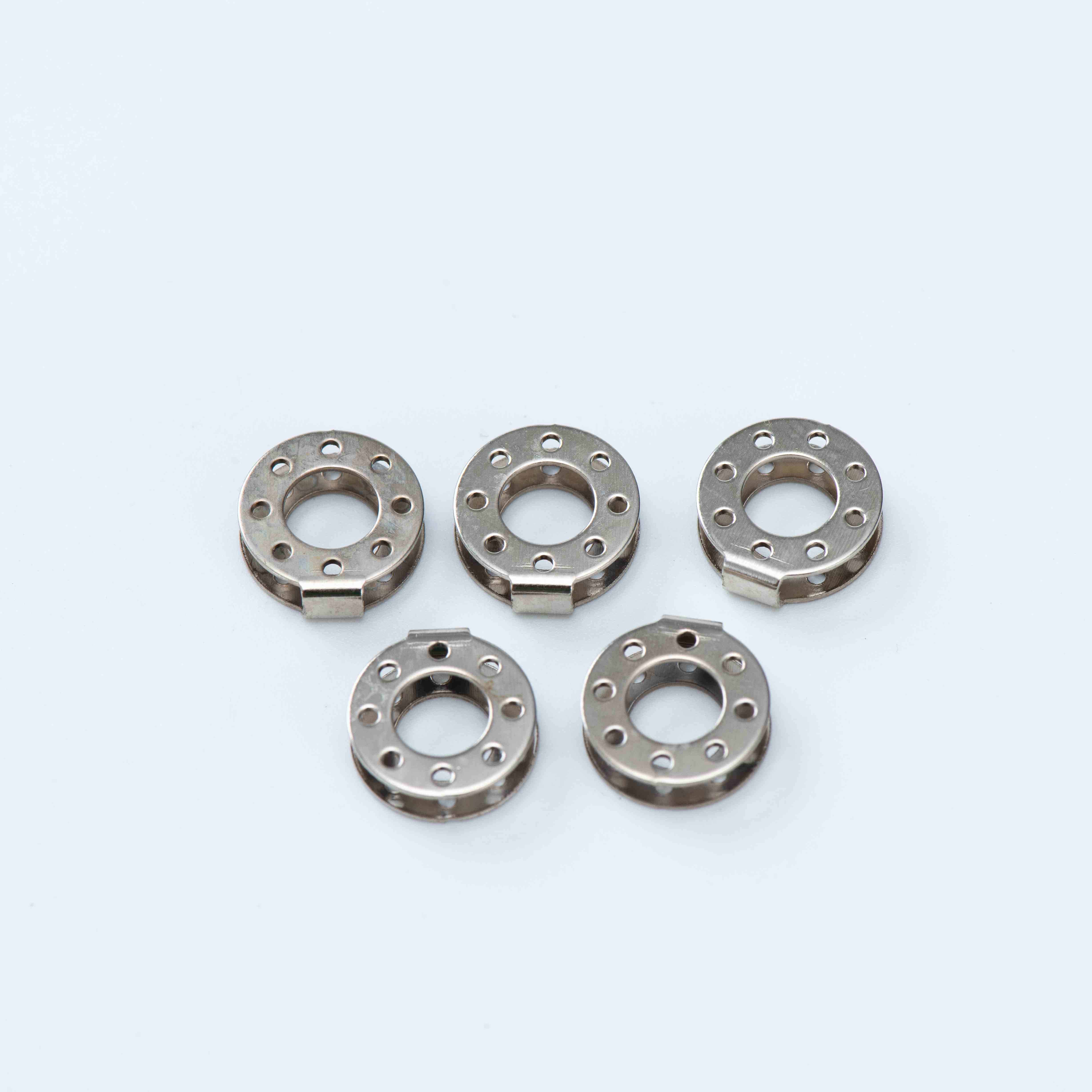

What Are the Structural Features of a Double-Sided Friction Hook Washer?
The washer features a distinctive U-shaped structure designed specifically for precision torque hinge assemblies.
Main Structural Characteristics
U-shaped hook design
Two circular friction surfaces
Central connecting hook tab
Oil-retention dimples
Blind holes and through holes
Precision formed bending structure
Typical material thickness ranges from 0.50 mm to 0.60 mm, depending on hinge design requirements and installation space.
How Does a Double-Sided Friction Hook Washer Improve Hinge Performance?
During hinge rotation, friction is generated between mating surfaces to create torque resistance.
Without a protective friction washer, softer hinge components may gradually wear down, leading to:
Reduced torque performance
Screen drooping
Loose hinge feel
Increased noise
Shortened product lifespan
A Double-Sided Friction Hook Washer absorbs most of the friction load, preserving the integrity of the main hinge structure and ensuring consistent opening and closing performance.
Critical Manufacturing Control Points
Precision manufacturing is essential for achieving stable hinge performance.
1. Inner Diameter Tolerance
The center hole tolerance should typically be controlled within ±0.05 mm to ensure proper shaft engagement and prevent assembly looseness.
2. U-Bend Accuracy
The U-shaped bend dimension should remain within ±0.05 mm to guarantee accurate positioning and proper contact with mating components.
3. Hook Width Consistency
The hook width should be maintained within ±0.03 mm to ensure reliable installation and functional stability.
4. Surface Flatness
The flatness of both outer friction surfaces should remain within 0.02 mm to maintain smooth hinge movement and uniform friction distribution.
5. Bend Quality
The inner bend area must be free of compression marks, while the outer bend surface must not exhibit cracking. Any defects may lead to premature hook failure during long-term use.
6. Dimensional Consistency
The bend root and opening dimensions must remain consistent to ensure efficient assembly and repeatable production quality.
What Materials Are Used for Double-Sided Friction Hook Washers?
SK7 Spring Steel
Excellent wear resistance
High dimensional stability
Suitable for precision laptop hinges
Widely used in consumer electronics
65Mn Spring Steel
High strength
Excellent fatigue resistance
Cost-effective for mass production
Common in commercial and industrial hinges
These materials provide an ideal balance between hardness, durability, and forming performance.
Heat Treatment and Surface Finishing
Heat Treatment
After heat treatment, hardness is typically controlled between HRC 43–48, providing excellent wear resistance while maintaining structural integrity.
Surface Treatments
Environmental Black Zinc
Chemical Nickel Plating
Black Nickel Coating
Zinc-Aluminum Alloy Coating
Zinc-Nickel Alloy Coating
The selected finish depends on the environmental conditions of the final product.
How to Select the Right Double-Sided Friction Hook Washer
Step 1: Determine Washer Dimensions
Choose the appropriate outer diameter and inner hole size based on available installation space and shaft dimensions.
Step 2: Evaluate Environmental Conditions
| Application Environment | Recommended Surface Treatment |
|---|---|
| Standard Indoor Environment | Nickel Plating |
| Humid Indoor Environment | Chemical Nickel or Black Zinc |
| Outdoor Applications | Zinc-Nickel Alloy Coating |
Step 3: Match Washer Thickness
The washer thickness should match the thickness of the rotating component to ensure optimal protection and torque performance.
Typical Applications
Laptop Hinges
Notebook Computer Hinges
Monitor Hinges
All-in-One PC Hinges
POS Terminal Hinges
Automotive Display Hinges
Medical Equipment Hinges
Industrial Control Panels
Smart Home Devices
Commercial Equipment Hinges
